PORTABLE PROFESSIONAL POWER

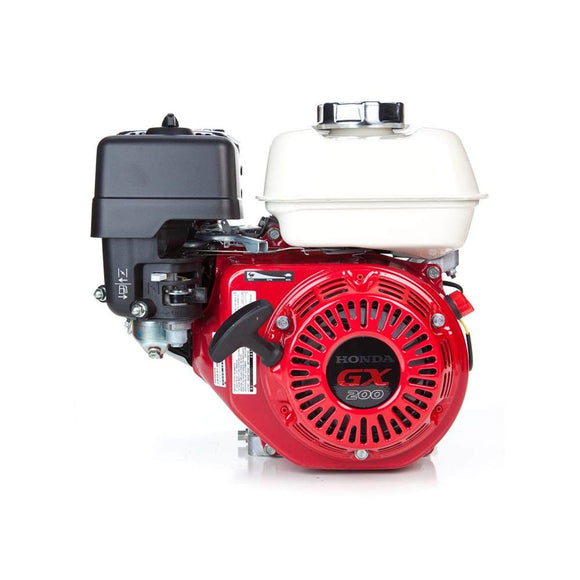

GX200 Series

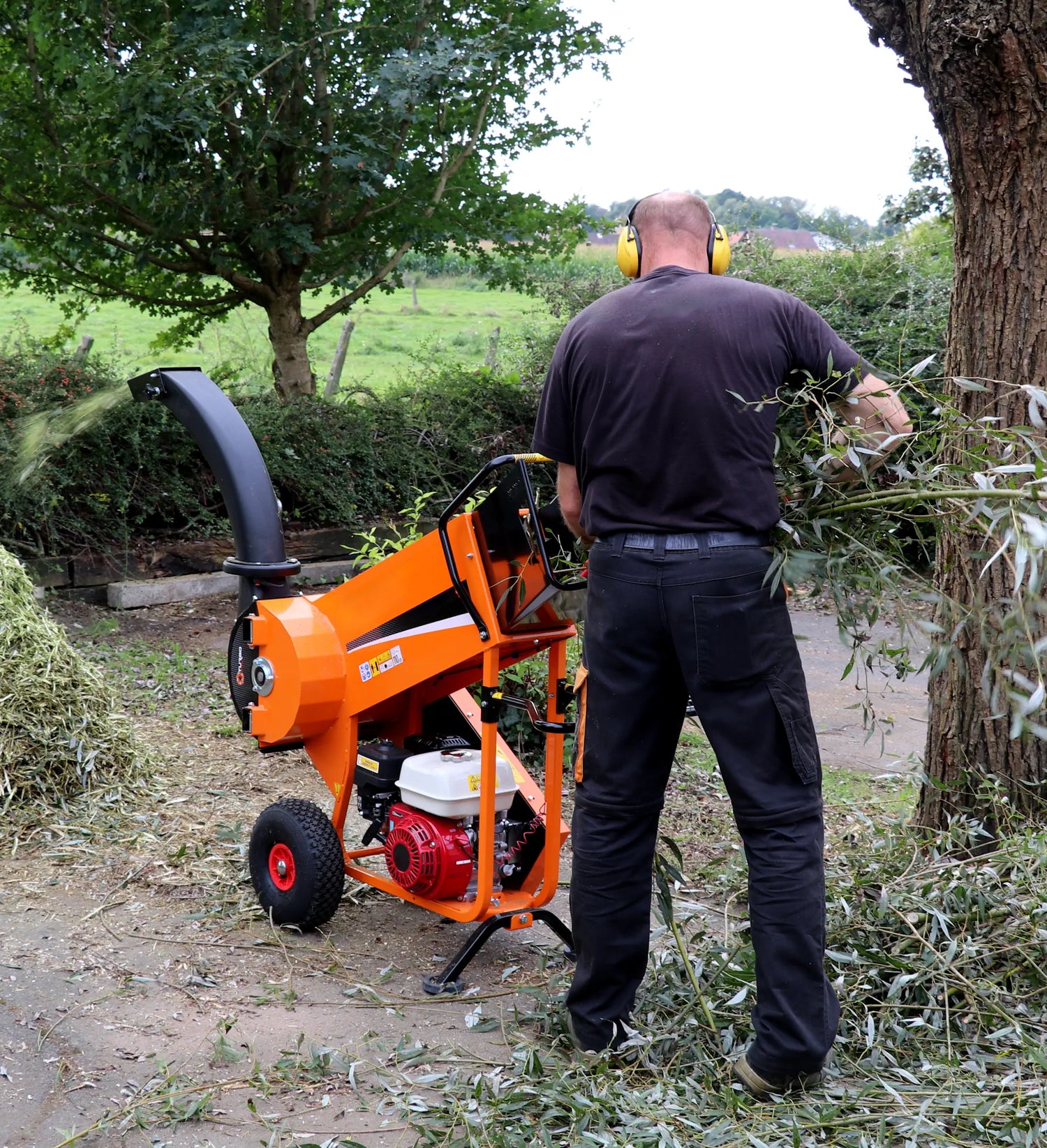

Honda GX200 replacement engines are designed to deliver reliable, high-performance power for a wide range of equipment. Built with a durable overhead valve design, cast iron cylinder sleeve, and precision-engineered components, these engines provide long service life and consistent operation. Known for easy starting, smooth performance, and excellent fuel efficiency, GX200 engines are a top choice for replacing worn or underperforming engines on pressure washers, feed mixers, pumps, sod cutters, plate compactors and other commercial and industrial equipment. Upgrade your machinery with a dependable Honda GX200 replacement engine built for demanding jobs.
Overhead Valve (OHV) Design
The GX160's valves are located above the combustion chamber allowing for enhanced fuel mixture intake, more complete exhaust and a higher compression ratio. The OHV layout of Honda's GX160 engines results in greater power output, reduced cylinder distortion and more efficient oil consumption for longer maintenance intervals.
Heavy Duty Recoil Starter
The GX160's large, easy-to-grip recoil starter handle coupled with with Honda's automatic mechanical decompression system makes for easy starting every time.
Precision Engineered Components
Honda's high-quality parts are less-prone to wear and corrosion for a longer engine life and provide minimal vibration and increased stability during operation.
Air-Cooled
Simple, lightweight engine design that is easy to maintain
4-Stroke
No oil/gas mixing required for cleaner emissions and better fuel efficiency
High Compression Ratio
Increased power output and thermal efficiency without an increase in engine size
GX200 Engine Series Specs
Learn more about the key specifications present on all gas-powered Honda GX200 models
Displacement: 196cc | 12 cu. in.
Net Power: 5.5 HP @ 3600 RPM
Net Torque: 9.1 ft lbs @ 2500 RPM
Carburetor Type: Butterfly
Bore x Stroke: 2.7" x 2.1" | 68mm x 54mm
Ignition System: Transistor Magneto
Oil Capacity: 0.63 US quart
Fuel Tank Capacity: 3.3 US quarts
Governor System: Mechanical
Engine Type: Air-Cooled | 4-Stroke | OHV | Single Cylinder
Warranty: 3 Year Commercial & Consumer
Compare Honda GX200 Engine Models
Explore the key technical differences between our available GX200 engines
Engines within the same series may look almost identical, but certain specifications will not be obvious in a photo! These important specs ultimately determine whether or not an engine is compatible with your unique application and equipment.
Please note: the most accurate way to determine the correct replacement engine is by identifying and providing your current engine's model and spec numbers. Learn where to find your engine's identifying information in our Find Your Engine Model Number guide >
Engine

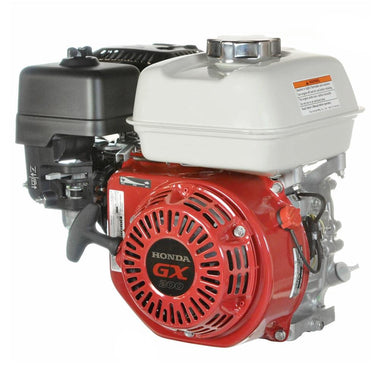

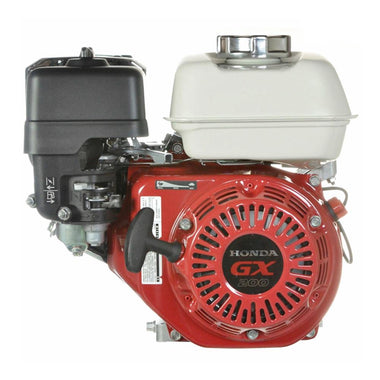

GX200 HX2

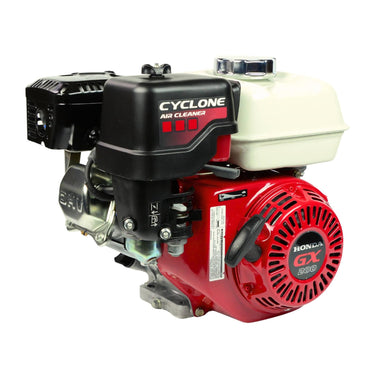

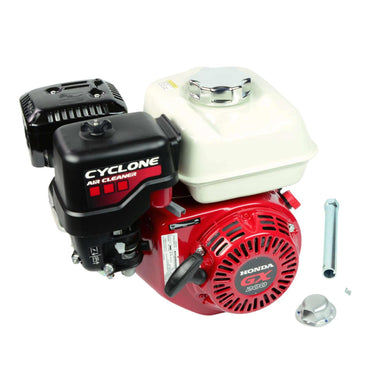

GX200 QC9

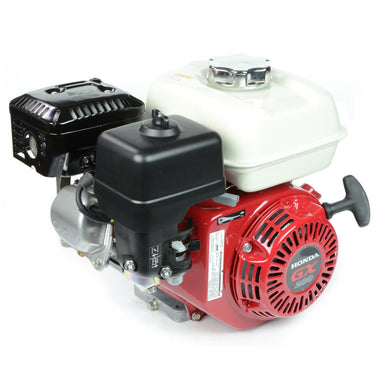

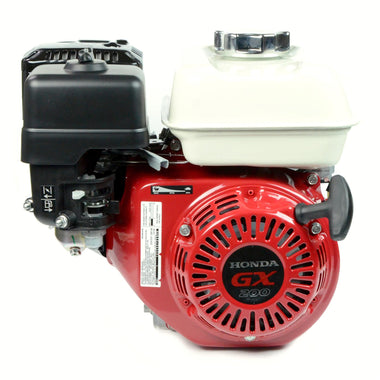

GX200 QG2

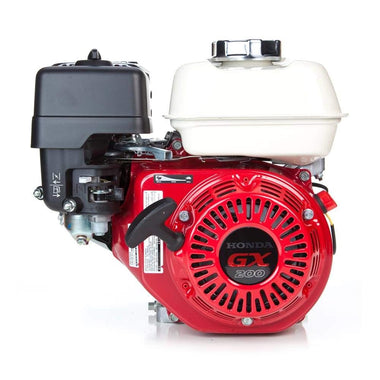

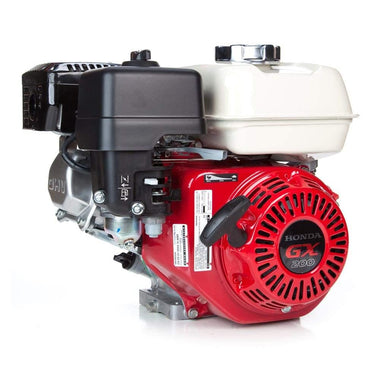

GX200 QX2
Crankshaft Diameter
3/4"
3/4"
3/4"
3/4"
Crankshaft Length
1-31/32"
2-7/16"
2-7/16"
2-7/16"
Air Filter
Dual
Cyclone
Dual
Dual
Gear Reduction
6:1
Starting System
Recoil
Recoil
Recoil
Recoil
Coil
7 Amp Charge Coil
Engine
GX200 HX2
GX200 QC9
GX200 QG2
GX200 QX2
Engine

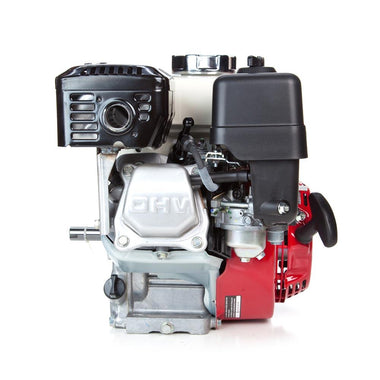

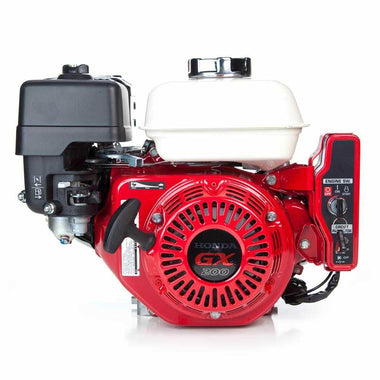

GX200 QXE2

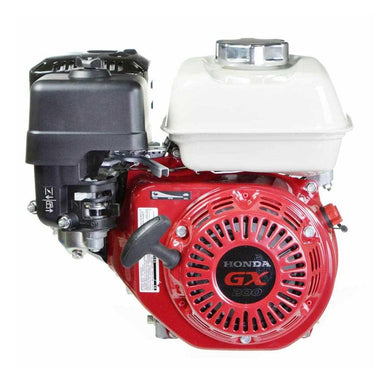

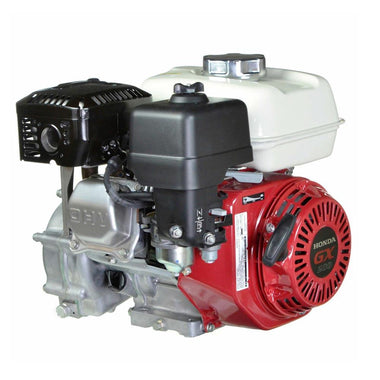

GX200 RH2

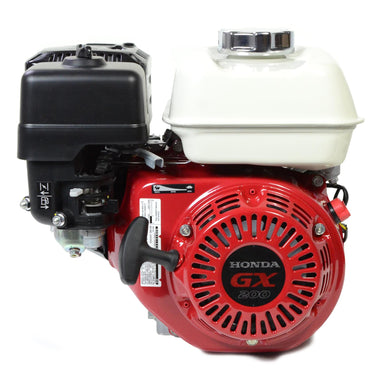

GX200 TX2
Crankshaft Diameter
3/4"
22mm
5/8" Threaded
Crankshaft Length
2-7/16"
2-3/32"
2-7/16"
Air Filter
Dual
Dual
Dual
Gear Reduction
2:1 with Wet Clutch
Starting System
Recoil & Electric
Recoil
Recoil
Coil
1 Amp Charge Coil
Engine
GX200 QXE2
GX200 RH2
GX200 TX2
-
Displacement
