SKU: HDA,GC190-LAMHA2
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

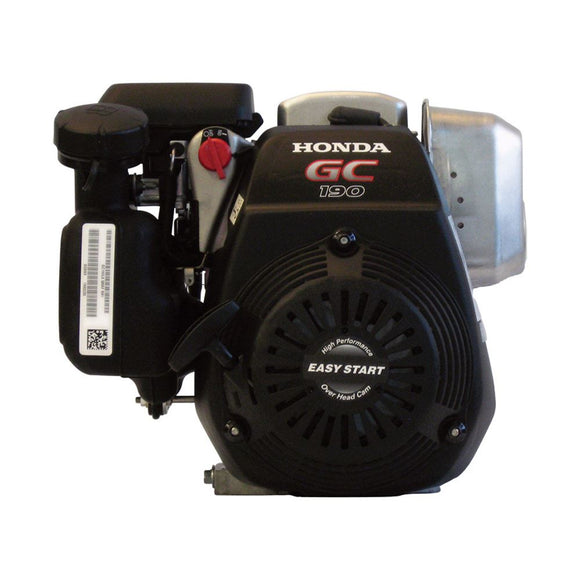

Honda GC190 MHA2 Horizontal OHC Engine, 187cc, 5.2 Net HP, 3/4" x 1.84" M-Type Crankshaft, Manual Throttle Control, Model GC190LAMHA2
Product specifications for Honda GC190 MHA2 Horizontal Engine
| Engine Information |
| Brand |
Honda |
| Model Number |
GC190-LAMHA2
|
| Warranty |
2 Year Residential | 3 Month Commercial
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
34.0 lb |
| Power |
| Power Output |
5.2 HP @ 3600 RPM
|
| Torque |
8.3 lb-ft (11.2 Nm) @ 2500 rpm
|
| Crankshaft |
| Orientation |
Horizontal
|
| Type |
M-Type
|
| Diameter |
3/4"
|
| Length |
1.84"
|
| Dimensions |
3/4" x 1.84"
|
| End Tapped Size |
1/4"-28
|
| Rotation Direction |
Counter-Clockwise
|
| Other Engine Specifications |
| Starter Type |
Recoil
|
| Ignition System |
Transistorized Magneto
|
| Carburetor |
Horizontal Type Butterfly Valve
|
| Number of Cylinders |
One
|
| Air Cleaner |
Paper Element
|
| Oil Capacity |
0.61 qt
|
| Fuel |
Unleaded 86 Octane or Higher
|
| Fuel Tank Capacity |
1.9 qt
|
| Fuel Pump |
N/A
|
| Governor System |
Centrifugal Mechanical
|
| Controls |
Manual Choke
|
| Bore x Stroke |
2.7" x 2.0"
|
| Compression Ratio |
8.5 : 1
|
