SKU: HDA,GCV160-S3A
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

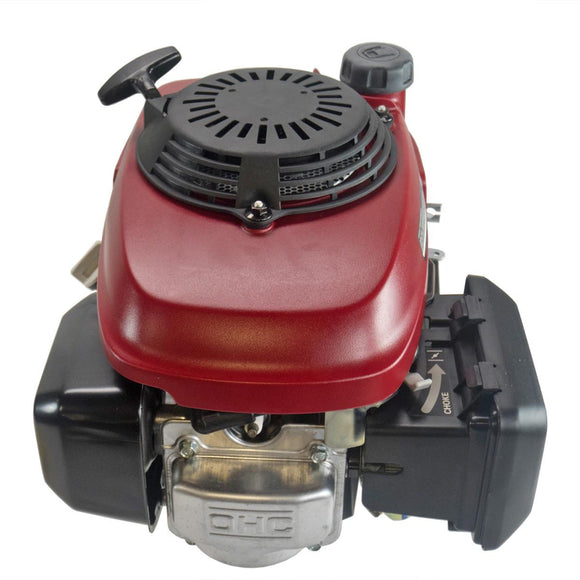

Honda GCV160 S3A Vertical Engine, 160cc, 4.4 Net HP
Product specifications for Honda GCV160 S3A Vertical Engine
| Engine Information |
| Brand |
Honda |
| Model Number |
GCV160-S3A
|
| Warranty |
2 Year Residential | 3 Month Commercial
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
33.0 lb |
| Power |
| Crankshaft |
| Orientation |
Vertical
|
| Type |
Straight
|
| Diameter |
.98"
|
| Length |
3.36"
|
| Dimensions |
.98" x 3.36"
|
| End Tapped Size |
3/8"-24
|
| Rotation Direction |
Counter-Clockwise
|
| Other Engine Specifications |
| Ignition System |
Transistorized Magneto
|
| Carburetor |
Horizontal Type Butterfly Valve
|
| Number of Cylinders |
One
|
| Air Cleaner |
Paper Element
|
| Oil Capacity |
0.58 qt
|
| Fuel |
Unleaded 86 Octane or Higher
|
| Fuel Tank Capacity |
0.98 qt
|
| Fuel Pump |
N/A
|
| Governor System |
Centrifugal Mechanical
|
| Controls |
Fixed Throttle
|
| Bore x Stroke |
2.5" x 2.0"
|
| Compression Ratio |
8.5 : 1
|
