SKU: HDA,GCV160-S3B
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

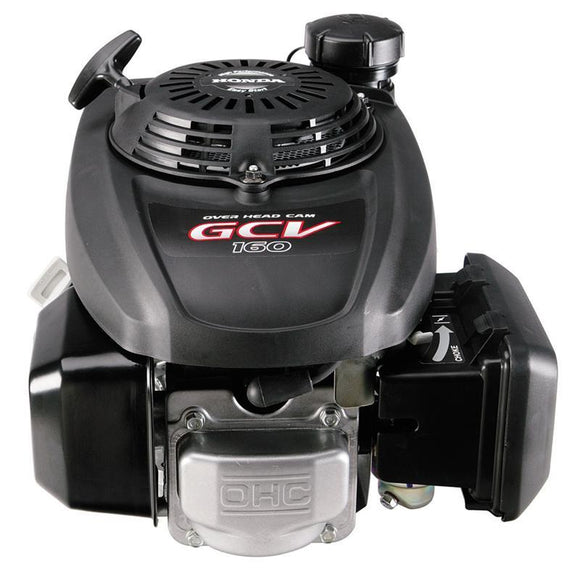

Honda GCV160 S3B Vertical Engine, 160cc, 4.4 Net HP, 25mm x 3-5/32" Keyed Crankshaft, 3/16" Keyway, With Flywheel Brake for Push Mowers - Image represents basic model spec - actual specifications may differ - please verify this is the correct replacement with your current engine model and serial numbers.
Product specifications for Honda GCV160 S3B Vertical Engine
| Engine Information |
| Brand |
Honda |
| Model Number |
GCV160-S3B
|
| Warranty |
2 Year Residential | 3 Month Commercial
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
33.0 lb |
| Power |
| Crankshaft |
| Orientation |
Vertical
|
| Diameter |
25mm
|
| Length |
3-5/32"
|
| Dimensions |
25mm x 3-5/32"
|
| Rotation Direction |
Counter-Clockwise
|
| Other Engine Specifications |
| Ignition System |
Transistorized Magneto
|
| Carburetor |
Horizontal Type Butterfly Valve
|
| Number of Cylinders |
One
|
| Air Cleaner |
Paper Element
|
| Oil Capacity |
0.58 qt
|
| Fuel |
Unleaded 86 Octane or Higher
|
| Fuel Tank Capacity |
0.98 qt
|
| Governor System |
Centrifugal Mechanical
|
| Controls |
Flywheel Brake
|
| Bore x Stroke |
2.5" x 2.0"
|
| Compression Ratio |
8.5 : 1
|
