SKU: HDA,GXV390-DABG
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

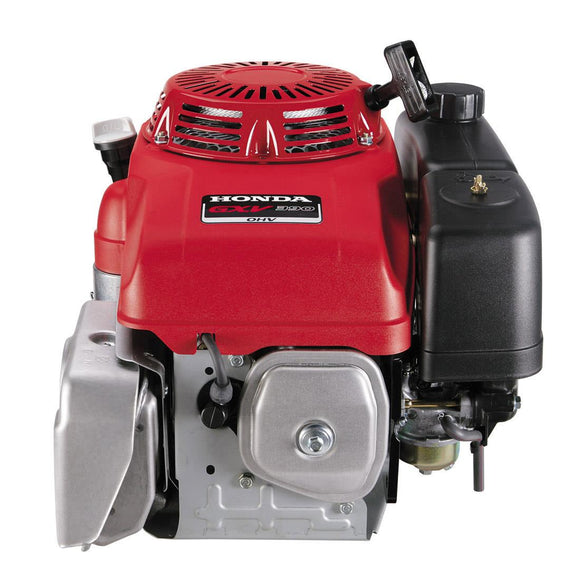

Honda GXV390 DABG Vertical OHV Engine, 1" x 3.13" Crankshaft, 1/4" Keyway, 389cc, 10.2 Net HP, Rewind Start
Superseded by Honda GXV390-DAXB
Product specifications for Honda GXV390 DABG Vertical Engine
| Engine Information |
| Brand |
Honda |
| Model Number |
GXV390-DABG
|
| Warranty |
3 Year Residential | 3 Year Commercial
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
80.0 lb |
| Power |
| Crankshaft |
| Orientation |
Vertical
|
| Type |
Straight
|
| Diameter |
1"
|
| Length |
3.13"
|
| Dimensions |
1" x 3.13"
|
| End Tapped Size |
7/16"-20
|
| Rotation Direction |
Counter-Clockwise
|
| Other Engine Specifications |
| Starter Type |
Recoil
|
| Ignition System |
Transistorized Magneto
|
| Carburetor |
Float Type
|
| Number of Cylinders |
One
|
| Air Cleaner |
Dual Element
|
| Oil Capacity |
1.2 qt
|
| Fuel |
Unleaded 86 Octane or Higher
|
| Fuel Tank Capacity |
2.2 qt
|
| Fuel Pump |
N/A
|
| Governor System |
Centrifugal Mechanical
|
| Bore x Stroke |
88mm x 64mm
|
| Compression Ratio |
7.7 : 1
|
| Charging System |
N/A
|
