This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

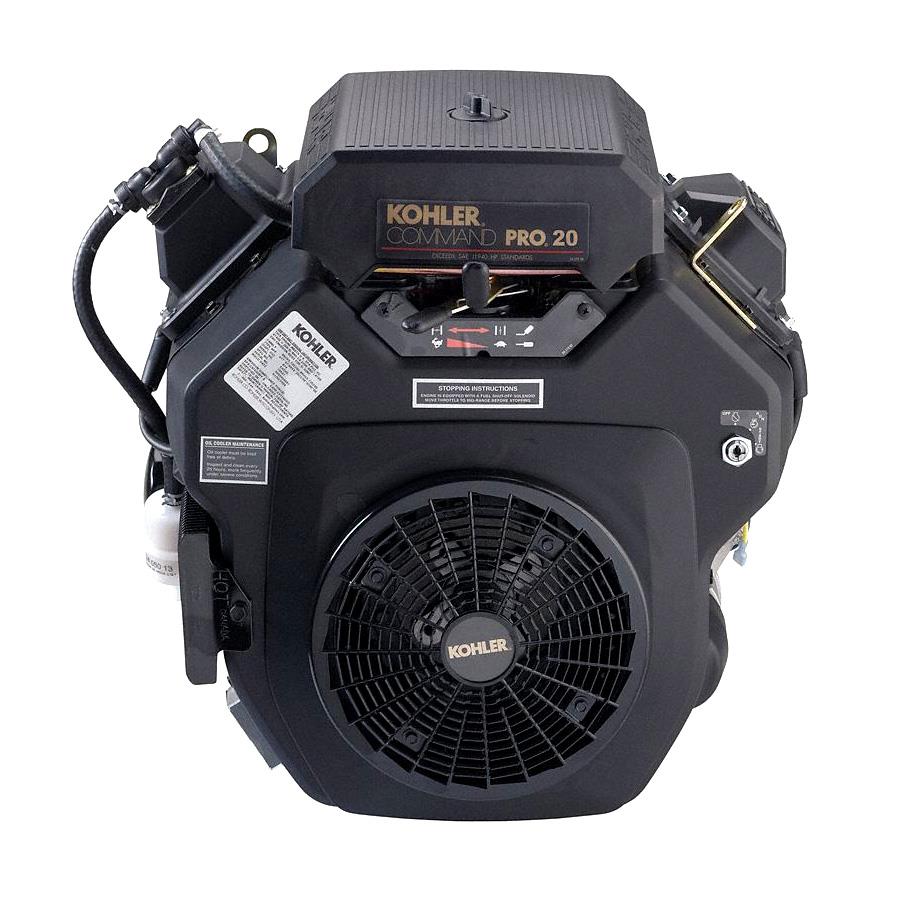

Kohler CH640-3227 Horizontal OHV Command PRO Engine, 1.437" x 4.46" Crankshaft, Electric Start with 15 Amp Charging and Key Switch Installed, 20.5 Gross HP, 674cc, 35.7 ft lbs Torque, Low Vac, Replaces CH640-3202 & CH640-3002
Replaced by PA-CH640-3261
Product specifications for Kohler CH640-3227 Horizontal Engine, Replaces CH640-3202 & CH640-3002
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-CH640-3227
|
| Warranty |
3 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
90.0 lb |
| Power |
| Max RPM |
2400
|
| Crankshaft |
| Orientation |
Horizontal
|
| Diameter |
1.437"
|
| Length |
4.46"
|
| Dimensions |
1.437" x 4.46"
|
| Other Engine Specifications |
| Starter Type |
Electric
|
| Ignition System |
Electronic
|
| Carburetor |
Two-Barrel
|
| Number of Cylinders |
Two
|
| Cylinder Bore |
Cast Iron Liners
|
| Oil Capacity |
2.0 qt
|
| Fuel |
Gasoline
|
| Bore x Stroke |
3.1" x 2.6"
|
| Compression Ratio |
8.5 : 1
|
| Charging System |
15 Amp
|
| Engine Notes |
Basic E16 spec with panel. Low vac.
|
