SKU: KOH,PA-CH680-3106
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

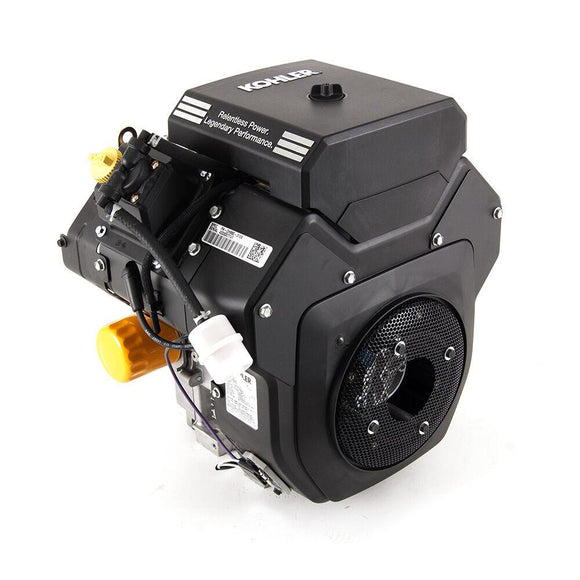

Kohler CH680-3106 Horizontal OHV Command PRO Engine, 1-1/8" x 2.79" Crankshaft, Electric Start with 15 Amp Charging, 22.5 Gross HP, 674cc, 36.8 ft lbs Torque, E3 MTD Spec
Product specifications for Kohler CH680-3106 Horizontal Engine
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-CH680-3106
|
| Warranty |
3 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
100.0 lb |
| Power |
| Max RPM |
2400
|
| Crankshaft |
| Orientation |
Horizontal
|
| Diameter |
1.125"
|
| Length |
2.79"
|
| Dimensions |
1.125" x 2.79"
|
| Other Engine Specifications |
| Starter Type |
Electric
|
| Ignition System |
Electronic
|
| Carburetor |
Two-Barrel
|
| Number of Cylinders |
Two
|
| Cylinder Bore |
Cast Iron Liners
|
| Air Cleaner |
Flat
|
| Oil Capacity |
2.0 qt
|
| Fuel |
Gasoline
|
| Bore x Stroke |
3.1" x 2.7"
|
| Compression Ratio |
8.7 : 1
|
| Charging System |
15 Amp
|
| Engine Notes |
E3 MTD spec
|
