SKU: KOH,PA-KT735-3053
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

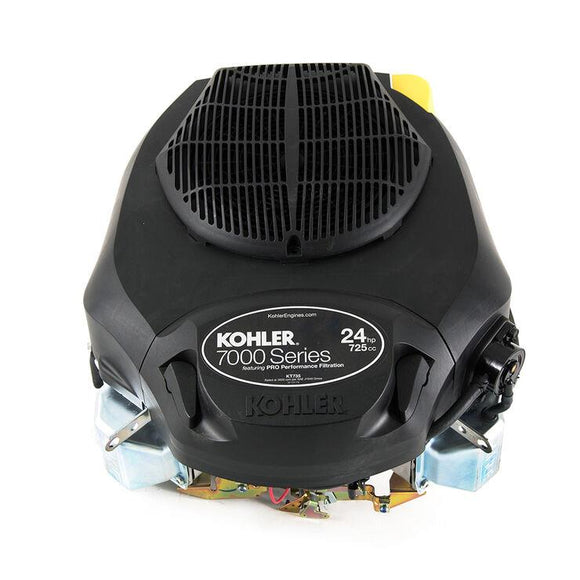

Kohler KT735-3053 Vertical V-Twin 7000 Series Engine, 1" x 3.16" Crankshaft, 24 Max HP, 725cc, 40.5 ft lbs Torque, Bendix Drive Starter, Low Profile Air Cleaner, RFI Ignition, E09 Ariens Spec, Replaces KT735-3015 and SV725-3029
Product specifications for Kohler KT735-3053 Vertical 7000 Series Engine, Replaces KT735-3015
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-KT735-3053
|
| Warranty |
3 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
91.0 lb |
| Power |
| Max RPM |
3600
|
| Crankshaft |
| Orientation |
Vertical
|
| Diameter |
1"
|
| Length |
3.16"
|
| Dimensions |
1" x 3.16"
|
| Other Engine Specifications |
| Starter Type |
Bendix Drive Electric
|
| Number of Cylinders |
Two
|
| Cylinder Bore |
Cast Iron Liners
|
| Air Cleaner |
Low Profile
|
| Oil Capacity |
2.0 qt
|
| Fuel |
Gasoline
|
| Controls |
Dual
|
| Bore x Stroke |
3.3" x 2.6"
|
| Compression Ratio |
9.1 : 1
|
| Charging System |
Yes
|
| Engine Notes |
E09 Ariens spec with RFI ignition
|
