SKU: KOH,PA-KT745-3017
Barcode: 694157539362
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

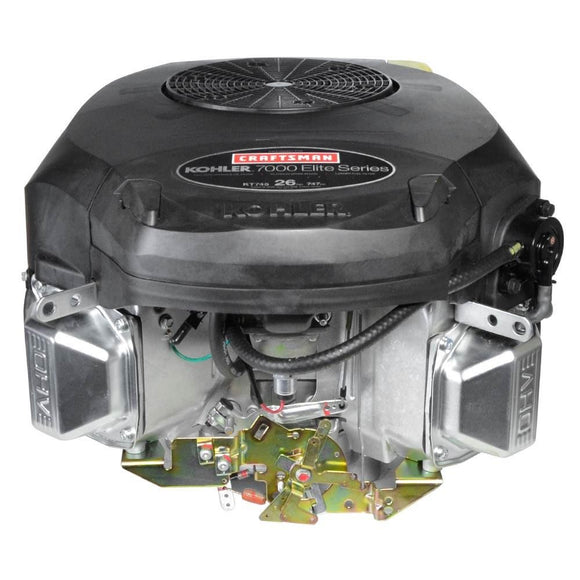

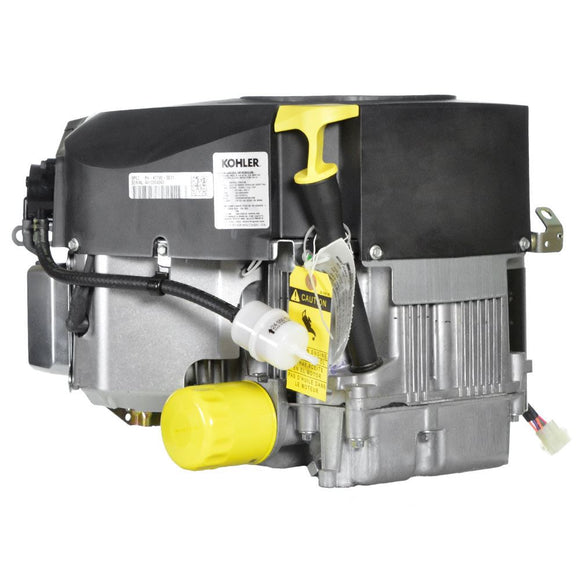

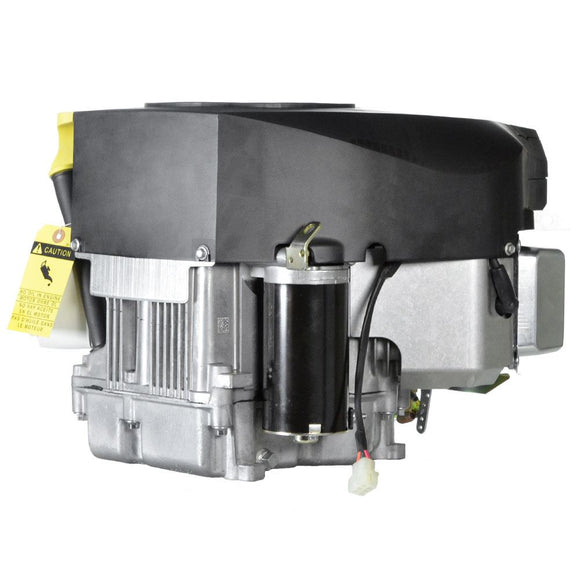

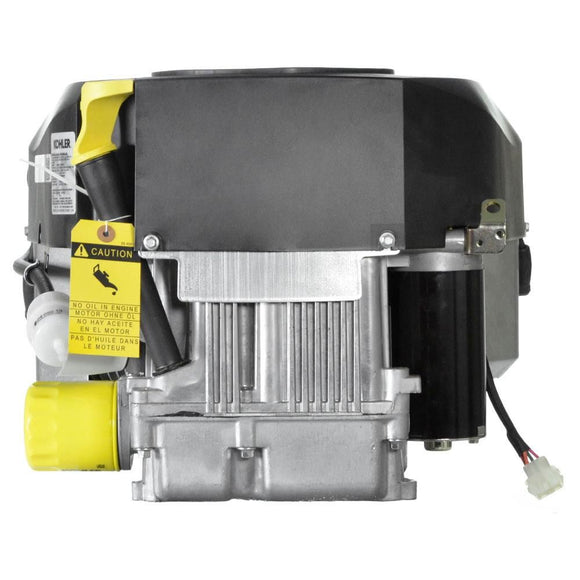

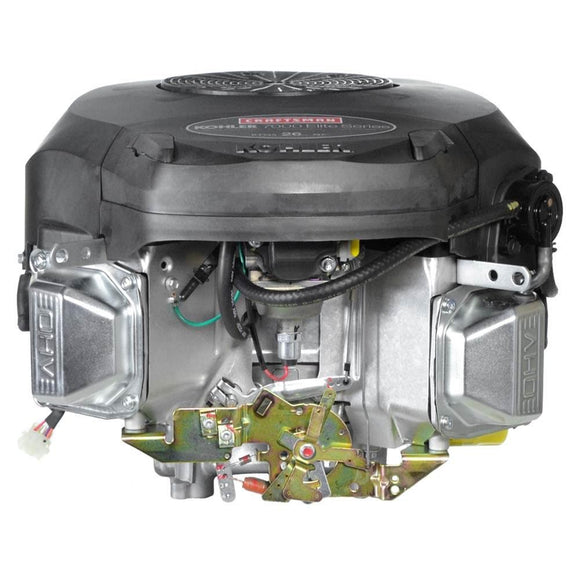

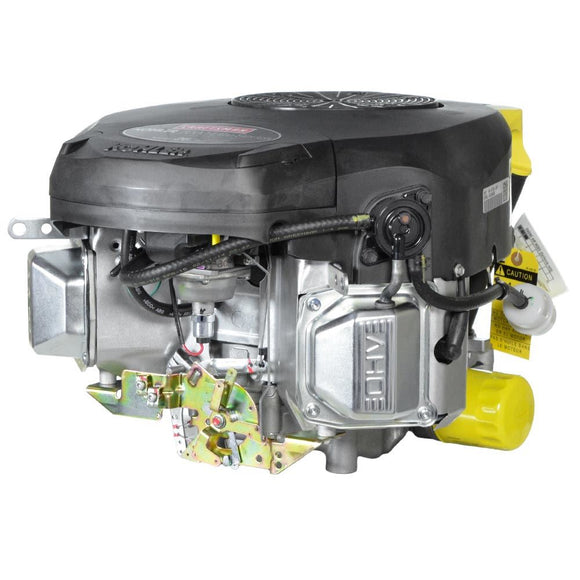

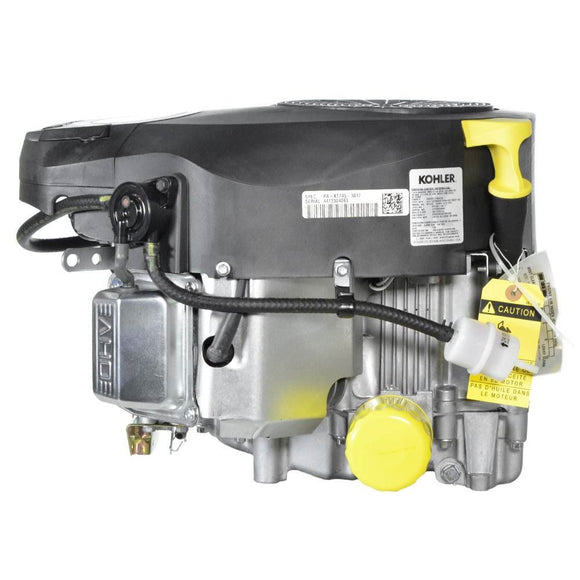

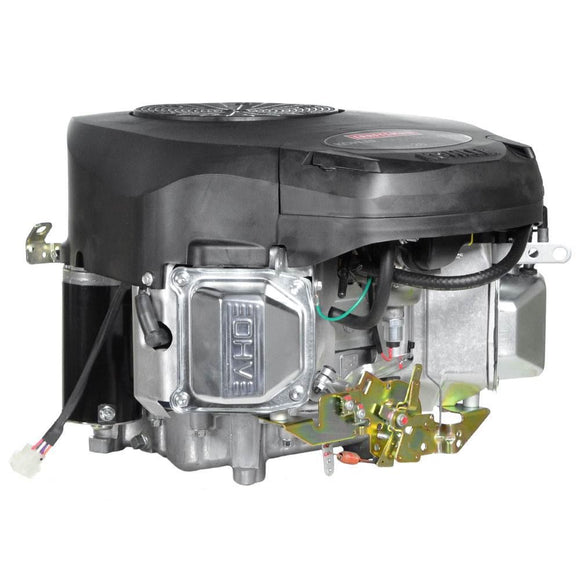

Kohler KT745-3017 Vertical V-Twin 7000 Series Engine, 1.125" x 4.3" Crankshaft, Electric Start with 12 Amp Regulator, 26 Max HP, 747cc, 42.4 ft lbs Torque, Hop Sears Craftsman Spec, Replaces SV735-3028 and SV735-3016
Product specifications for Kohler KT745-3017 Vertical 7000 Series Engine, Replaces SV735-3028
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-KT745-3017
|
| Warranty |
3 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
91.0 lb |
| Power |
| Crankshaft |
| Orientation |
Vertical
|
| Diameter |
1.125"
|
| Length |
4.3"
|
| Dimensions |
1.125" x 4.3"
|
| Other Engine Specifications |
| Starter Type |
Bendix Drive Electric
|
| Number of Cylinders |
Two
|
| Cylinder Bore |
Cast Iron Liners
|
| Oil Capacity |
2.0 qt
|
| Fuel |
Gasoline
|
| Bore x Stroke |
3.3" x 2.7"
|
| Compression Ratio |
9.1 : 1
|
| Charging System |
12 Amp Regulator
|
| Engine Notes |
Hop Sears Craftsman spec
|
