SKU: KOH,PA-CH620-3108
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

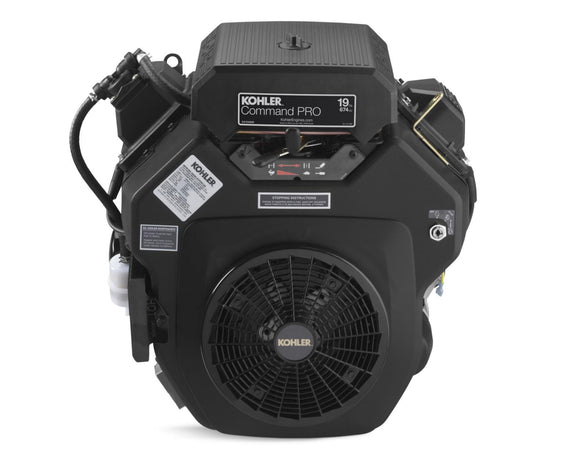

Kohler CH620-3108 Horizontal OHV Command PRO Engine, 1/2" x 1-1/2" Splined 9-Tooth A-Mount Crankshaft, With Control Panel, Electric Start with 15 Amp Charging, 674cc, 19 Gross HP, 35 ft lbs Torque, Replaces CH620-3008 and PA-62506
Replaced by PA-CH620-3161
Product specifications for Kohler CH620-3108 Horizontal Command PRO Engine, Replaces CH620-3008
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-CH620-3108
|
| Warranty |
3 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
107.0 lb |
| Power |
| Crankshaft |
| Orientation |
Horizontal
|
| Type |
9-Tooth Spline
|
| Diameter |
1/2"
|
| Length |
1-1/2"
|
| Dimensions |
1/2" x 1-1/2"
|
| Other Engine Specifications |
| Starter Type |
Electric
|
| Number of Cylinders |
Two
|
| Cylinder Bore |
Cast Iron Liners
|
| Oil Capacity |
2.0 qt
|
| Fuel |
Gasoline
|
| Bore x Stroke |
3.1" x 2.6"
|
| Compression Ratio |
8.5 : 1
|
| Charging System |
15 Amp
|
| Engine Notes |
Basic E3 spec with panel
|
