SKU: KOH,PA-ECV749-3058
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

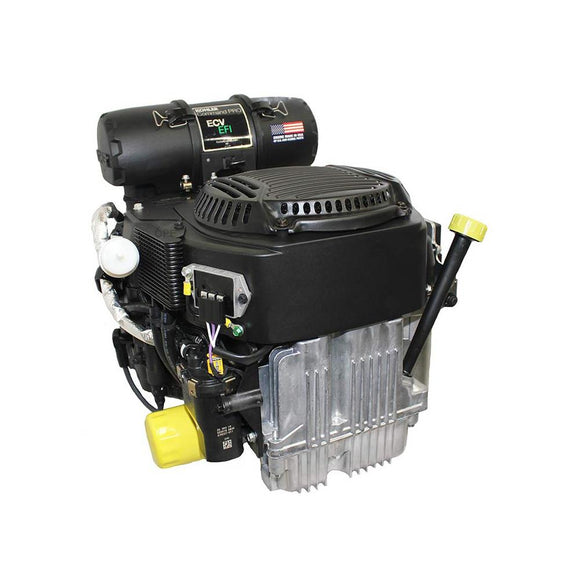

Kohler ECV749-3058 Vertical V-Twin Closed-Loop Electronic Fuel Injection OHV Engine, 1-1/8" x 4-3/8" Crankshaft, Electric Start with 15 Amp Alternator, Heavy Duty Air Cleaner, 26.5 Max HP, 747cc, 40.9 ft lbs Torque, E3 Toro Spec
Replaced by Kohler ECV749-3007 Vertical Command PRO V-Twin Engine with EFI
Product specifications for Kohler ECV749-3058 Vertical EFI Command PRO Engine, E3 Toro Spec
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-ECV749-3058
|
| Warranty |
3 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
120.0 lb |
| Power |
| Crankshaft |
| Orientation |
Vertical
|
| Diameter |
1-1/8"
|
| Length |
4-3/8"
|
| Dimensions |
1-1/8" x 4-3/8"
|
| End Tapped Size |
5/16/2024
|
| Other Engine Specifications |
| Starter Type |
Electric
|
| Number of Cylinders |
Two
|
| Cylinder Bore |
Cast Iron Liners
|
| Air Cleaner |
Heavy Duty
|
| Oil Capacity |
2.0 qt
|
| Fuel |
Gasoline
|
| Bore x Stroke |
3.3" x 2.7"
|
| Compression Ratio |
9.1 : 1
|
| Charging System |
15 Amp Alternator
|
| Engine Notes |
E3 Toro spec
|
