SKU: KOH,PA-RH265-3114
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

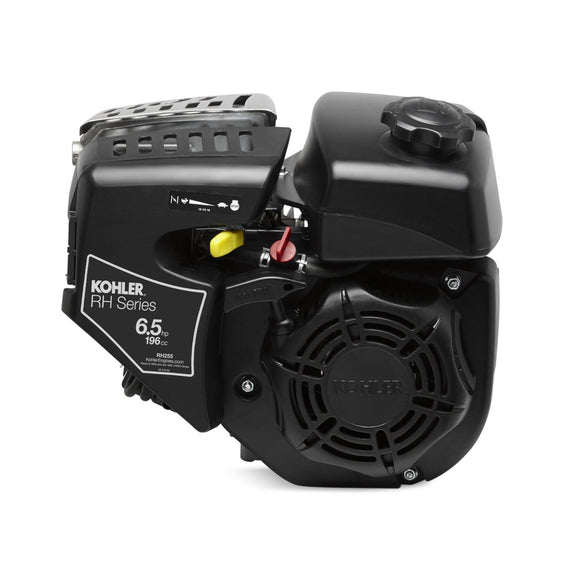

Kohler RH265-3114 Horizontal OHV Single-Cylinder Engine, 1" x 2.43" Crankshaft, 3/8"-24 Drilled & Tapped, 6.5 Max HP, 196cc, 10.7 ft lbs Torque, Recoil Only Start, E09 Frictionless World Spec
Product specifications for Kohler RH265-3114 Horizontal Engine, E09 Frictionless World Spec
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-RH265-3114
|
| Warranty |
2 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
30.0 lb |
| Power |
| Max RPM |
3850
|
| Crankshaft |
| Orientation |
Horizontal
|
| Diameter |
1.00"
|
| Length |
2.43"
|
| Dimensions |
1.00" x
|
| End Tapped Size |
3/8"-24
|
| Other Engine Specifications |
| Starter Type |
Easy-Pull Recoil
|
| Ignition System |
Electronic
|
| Number of Cylinders |
One
|
| Cylinder Bore |
Cast Iron Liner
|
| Air Cleaner |
Foam
|
| Oil Capacity |
0.6 qt
|
| Fuel |
Gasoline
|
| Fuel Tank Capacity |
2.0 qt
|
| Governor System |
Mechanical
|
| Controls |
Manual Throttle & Choke
|
| Bore x Stroke |
2.7" x 2.1"
|
| Compression Ratio |
8.5 : 1
|
| Charging System |
N/A
|
| Flywheel |
High Inertia
|
| Engine Notes |
E09 Frictionless World spec
|
