SKU: KOH,PA-XT173-3225
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

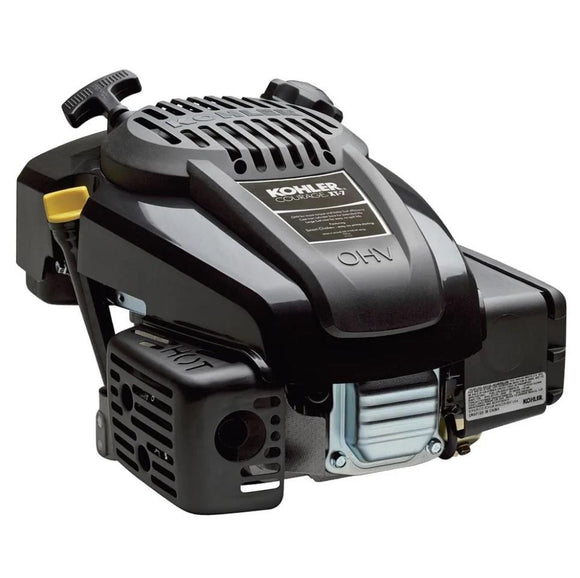

Kohler XT173-3225 Vertical OHV Single Cylinder Courage Series XT-7 Engine, 25mm x 3.12" Crankshaft, 1/4" Keyway, 3/8-24 Tapped, 4.5 HP, 173cc, Hop Repower Spec, Replaces XT173-3089
Replaced by XT800-3014
Product specifications for Kohler XT173-3225 Vertical Courage Engine, Replaces XT173-3089
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-XT173-3225
|
| Warranty |
2 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
34.0 lb |
| Power |
| Crankshaft |
| Orientation |
Vertical
|
| Diameter |
25mm
|
| Length |
3.12"
|
| Dimensions |
25mm x 3.12"
|
| End Tapped Size |
3/8"-24
|
| Other Engine Specifications |
| Starter Type |
Recoil
|
| Number of Cylinders |
One
|
| Cylinder Bore |
Cast Iron Liner
|
| Oil Capacity |
0.6 qt
|
| Fuel |
Gasoline
|
| Charging System |
N/A
|
