SKU: KOH,PA-ZT720-3016
Barcode:
This engine has been discontinued by the manufacturer. Give us a call if you need help finding an alternate option.

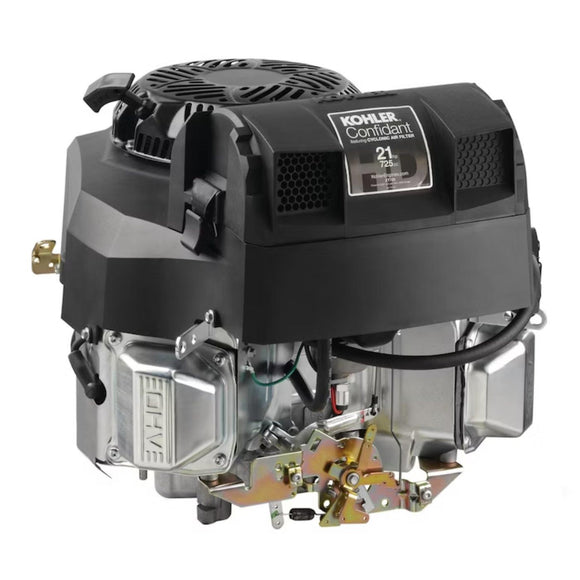

Kohler ZT720-3016 Vertical OHV Twin Cylinder Confidant Engine, 1" x 3.16" Crankshaft, Retractable Start, 21 Max HP, 725cc, 40.7 ft lbs Torque, For Wide Area Walk Behind Mowers
Replaced by PA-ZT720-3027
Product specifications for Kohler ZT720-3016 Vertical Wide Area Walk Behind Confidant Engine
| Engine Information |
| Brand |
Kohler |
| Model Number |
PA-ZT720-3016
|
| Warranty |
3 Year Limited
|
| Available to California |
Not Available to Ship to California
|
| Dimensions |
| Weight |
102.0 lb |
| Power |
| Max RPM |
3600
|
| Crankshaft |
| Orientation |
Vertical
|
| Diameter |
1"
|
| Length |
3.16"
|
| Dimensions |
1" x 3.16"
|
| Other Engine Specifications |
| Starter Type |
Retractable
|
| Number of Cylinders |
Two
|
| Cylinder Bore |
Cast Iron Liners
|
| Air Cleaner |
Heavy Duty
|
| Oil Capacity |
2.0 qt
|
| Fuel |
Gasoline
|
| Fuel Pump |
Pulse
|
| Governor System |
Mechanical
|
| Controls |
Dual
|
| Bolt Circle |
10"
|
| Bore x Stroke |
3.3" x 2.6"
|
| Compression Ratio |
9.0 : 1
|
| Charging System |
15 Amp Unregulated
|
| Engine Notes |
E09 Basic WAWB spec
|
