BUILT TOUGH. DESIGNED TO PERFORM.

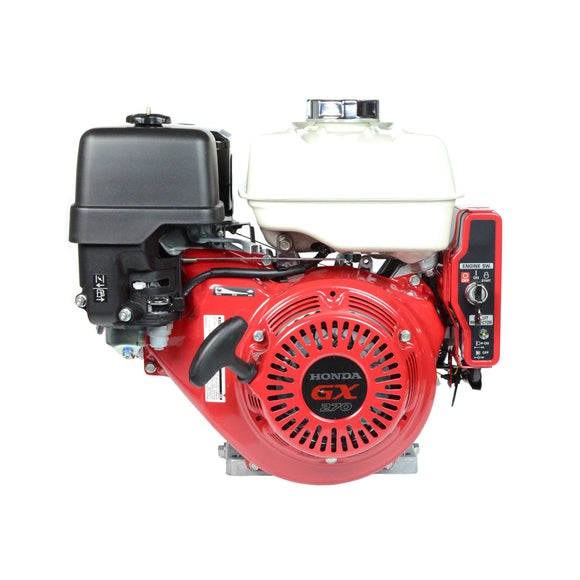

GX270 Series
Honda GX270 series engines deliver dependable, efficient power for a wide range of commercial and industrial equipment. Built for durability and consistent performance, these 270cc Honda GX engines feature reliable starting, strong torque, excellent fuel efficiency, and long-lasting operation in demanding applications. GX270 engines are well suited for water pumps, agricultural equipment, masonry saws, compressors, hydraulic power packs, asphalt kettles, and other power equipment requiring dependable 9 HP-class performance. With Honda’s reputation for quality and engineering, the GX270 series provides a versatile engine solution for equipment manufacturers, contractors, construction crews, landscapers, and other professionals who need reliable power day after day.
Overhead Valve (OHV) Design
The GX270's valves are located above the combustion chamber allowing for enhanced fuel mixture intake, more complete exhaust and a higher compression ratio. The OHV layout of Honda's GX270 engines results in greater power output, reduced cylinder distortion and more efficient oil consumption for longer maintenance intervals.
Heavy Duty Recoil Starter
The GX270's large, easy-to-grip recoil starter handle coupled with with Honda's automatic mechanical decompression system makes for easy starting every time.
Precision Engineered Components
Honda's high-quality parts are less-prone to wear and corrosion for a longer engine life and provide minimal vibration and increased stability during operation.
Air-Cooled
Simple, lightweight engine design that is easy to maintain
4-Stroke
No oil/gas mixing required for cleaner emissions and better fuel efficiency
High Compression Ratio
Increased power output and thermal efficiency without an increase in engine size
GX270 Engine Series Specs
Learn more about the key specifications present on all gas-powered Honda GX270 engine models
Displacement: 270cc | 16.5 cu. in.
Net Horsepower: 8.4 HP @ 3600 RPM
Net Torque: 14.1 ft lbs @ 2500 RPM
Bore x Stroke: 3.0" x 2.3" | 77mm x 58mm
Ignition System: Transistorized Magneto
Oil Capacity: 0.97 US quart
Fuel Tank Capacity: 1.4 US gal
Lubrication System: Forced Splash
Compression Ratio: 8.2 : 1
Engine Type: Air-Cooled | 4-Stroke | OHV | Single Cylinder
Warranty: 3 Year Commercial & Consumer
Compare GX270 Engine Models
Explore the key technical differences between the Honda GX270 engine models we offer
Engines within the same series may look the same, but certain specifications won't be obvious in a photo! These important specs ultimately determine whether or not an engine is compatible with your unique application and equipment.
Please note: the most accurate way to determine the correct replacement engine is by identifying and providing your current engine's model and spec numbers. Learn where to find your engine's identifying information in our Find Your Engine Model Number guide >
 |
 |
 |
 |
 |
|
| Engine | GX270 HA2 | GX270 HEA2 | GX270 PA2 | GX270 PAE2 | GX270 QA2 |
| Crankshaft Diameter |
1" | 1" | 1" Threaded | 1" Threaded | 1" |
| Crankshaft Length |
3-5/32" | 3-5/8" | 3-1/2" | 3-1/2" | 3-31/64" |
| Gear Reduction |
6:1 | 6:1 | --- | --- | --- |
| Air Filter |
Dual Element | Dual Element | Dual Element | Dual Element | Dual Element |
| Starting System | Recoil | Recoil & Electric | Recoil | Recoil & Electric | Recoil |
| Coil | --- | 3 Amp Charging | --- | 3 Amp Charging | --- |
