BUILT TO WORK. BUILT TO LAST.

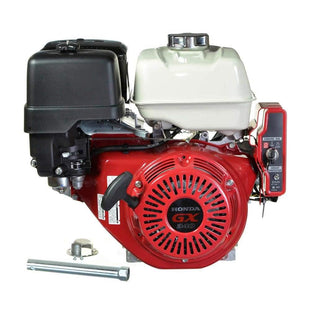

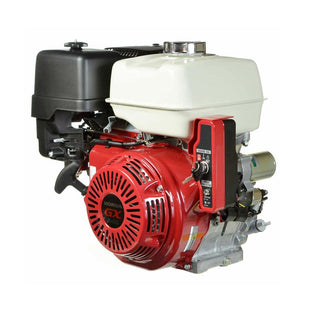

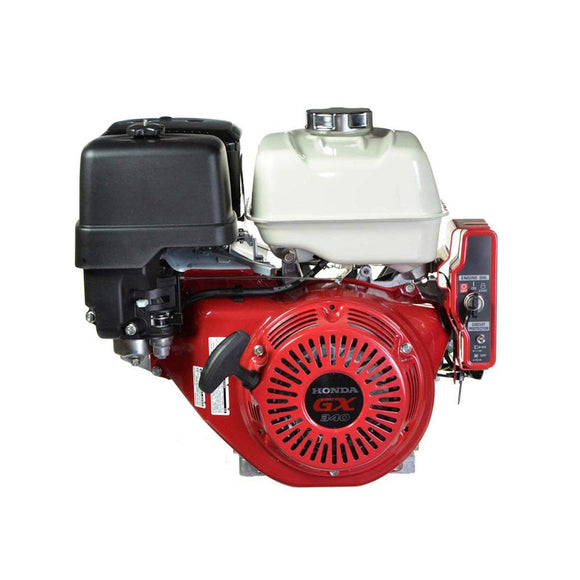

GX340 Series
Honda GX340 series engines deliver dependable, efficient power for demanding commercial and industrial equipment applications. With a durable four-stroke design, overhead valve (OHV) configuration and impressive torque output, GX340 engines are built to provide reliable performance, long service life and consistent operation in tough working conditions. Their versatile design makes them well-suited for a wide variety of equipment including compressors, hydraulic trailers, log splitters, agricultural sprayers, pumps and more. The GX340’s combination of power, durability, fuel efficiency and easy maintenance makes it a practical choice for equipment that requires dependable performance day after day.
Overhead Valve (OHV) Design
The GX340's valves are located above the combustion chamber allowing for enhanced fuel mixture intake, more complete exhaust and a higher compression ratio. The OHV layout of Honda's GX340 engines results in greater power output, reduced cylinder distortion and more efficient oil consumption for longer maintenance intervals.
CDI Magneto System
The GX340's Capacitor Discharge Ignition magneto system utilizes a flywheel magnet that spins to charge the capacitor, providing a rapid, high-voltage burst of energy to the spark plug. The CDI system ensures a reliable spark for easy starting and provides consistent energy at high engine speeds.
Precision Engineered Components
Honda's high-quality parts are less-prone to wear and corrosion for a longer engine life and provide minimal vibration and increased stability during operation.
Air-Cooled
Simple, lightweight engine design that is easy to maintain
4-Stroke
No oil/gas mixing required for cleaner emissions and better fuel efficiency
High Compression Ratio
Increased power output and thermal efficiency without an increase in engine size
GX340 Engine Series Specs
Learn more about the key specifications present on all gas-powered Honda GX340 engine models
Displacement: 337cc | 20.6 cu. in.
Max Horsepower: 11 HP @ 3600 RPM
Max Torque: 17.3 ft lbs @ 2500 RPM
Bore x Stroke: 3.23" x 2.52" | 82mm x 64mm
Ignition System: CDI
Fuel Tank Capacity: 1.72 US gal
Lubrication System: Splash
Compression Ratio: 8.0 : 1
Engine Type: Air-Cooled | 4-Stroke | OHV | Single Cylinder
Warranty: 3 Year Commercial & Consumer
